Name: A333 Seamless & Welded Steel Pipe
SKU: 0

Home > Products > Carbon Steel > Carbon Steel Pipe Tube > A333 Seamless & Welded Steel Pipe

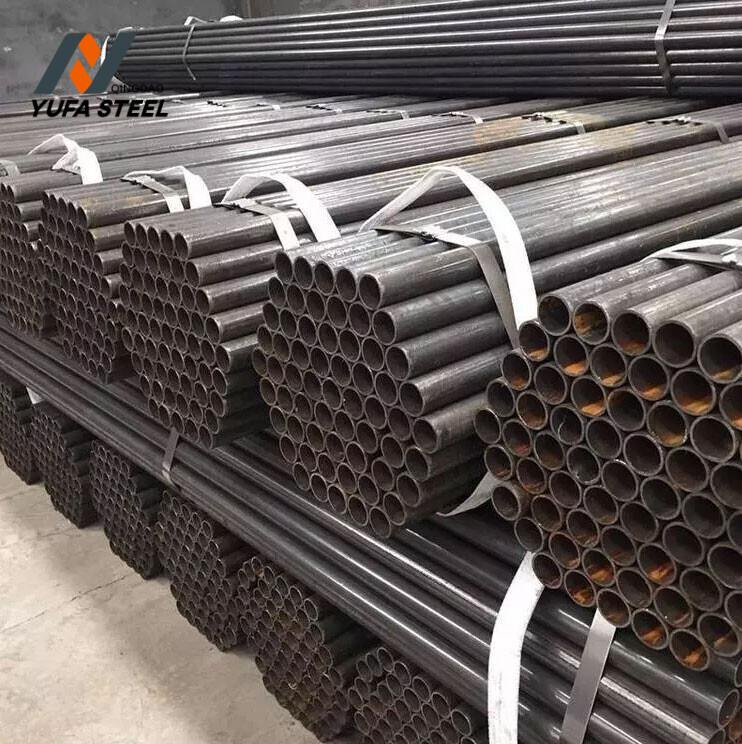

A333 Seamless & Welded Steel Pipe

ASTM A333 is the standard specification for seamless and welded carbon and alloy steel pipe for low temperature applications or other applications requiring notch toughness. This standard covers several grades of ferritic steel: Grade 3, Grade 4, Grade 6, Grade 7, Grade 8, Grade 9, Grade 10 and Grade 11.

+8618561841682

info@yufasteel.com

Contact Us

Products

Product Parameters

Carbon Steel: Properties, Production, Examples and Applications

Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.

Types of carbon steel and their properties

Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility

Carbon Steel Description

Grade:

1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E

2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q

3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80

4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE

PRODUCT DETAILS

A333 Seamless & Welded Steel Pipe Description

The main components of A333 seamless steel pipe include iron, carbon, chromium, nickel, manganese and other elements. Chromium has excellent corrosion resistance, while the addition of nickel further enhances the corrosion resistance and toughness of the material. A333 seamless steel pipe has high strength and hardness, as well as good plasticity and toughness. These excellent mechanical properties make A333 seamless steel pipe an ideal choice in many high-strength, high-corrosion-resistant application scenarios. A333 seamless steel pipe is commonly used to transport oil and natural gas with high temperature and high pressure owing to the excellent sealing and corrosion resistance.

Product Parameters
Product Name	A333 Seamless & Welded Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition
A333	Grade1	Grade3	Grade4	Grade6	Grade7	Grade8	Grade9	Grade10	Grade11
C	0.3	0.19	0.12	0.3	0.19	0.13	0.2	0.2	0.1
Mn	0.40-1.06	0.31-0.64	0.50-1.05	0.29-1.06	0.9	0.9	0.40-1.06	1.15-1.50	0.6
P	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.035	0.025
S	0.025	0.025	0.025	0.025	0.025	0.025	0.025	0.015	0.025
Si	-	0.18-0.37	0.08-0.37	0.10 min	0.13-0.32	0.13-0.32	-	0.10-0.35	0.35
Ni	-	3.18-3.82	0.47-0.98	0.4	2.03-2.57	8.40-9.60	1.60-2.24	0.25	35.0-37.0
Cr	-	-	0.44-1.01	0.3	-	-	-	0.15	0.5
Cu	-	-	0.40-0.75	0.4	-	-	0.75-1.25	0.15	-
Al	-	-	0.04-0.30	-	-	-	-	0.06	-

Mechanical Properties
A333	Tensile Strength min.		Yield Strength min.		Elongation % min.
Grade	psi	MPa	psi	MPa	Vertical	Transverse
Grade1	55 000	380	30 000	205	35	25
Grade3	65 000	450	35 000	240	30	20
Grade4	60 000	415	35 000	240	30	16.5
Grade6	60 000	415	35 000	240	30	16.5
Grade7	65 000	450	35 000	240	30	22
Grade8	100 000	690	75 000	515	22	-
Grade9	63 000	435	46 000	315	28	-
Grade10	80 000	550	65 000	450	22	-
Grade11	65 000	450	35 000	240	18	-

Scope of Application

Seamless and welded steel pipes for low temperature service and other applications with the required notch toughness.

Products

Product Display

Products ——

Product Packaging

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.

Products ——

Product Application

This product is widely used in the fields of building structures, mechanical manufacturing, automotive parts, energy equipment, and home hardware, and is suitable for scenarios such as load-bearing frames, precision parts, and industrial pipelines. With excellent physical performance and stability, it can easily meet the demands of high strength, high wear resistance, and extreme environments. Support collaboration with engineering teams to provide material selection suggestions and assist clients in efficiently implementing their projects.

Products

Factory Display

Products

Certificate

Products

FAQ

① Are you a trading company or a manufacturer ?

We are manufacturer. Every month, we do a procurement for a massive number of steel material from Chinese state owned mill. The total value of steel processing equipment is more than 30 million dollars. Our major products cover all category of steel industry, and it is totally compatible to all kind of world steel standard.

② Do you have large amount of steel products in stock ?

Yes, we do. In large-scale indoor warehouses, the total stock value is over 150 millions dollar.

③ Do you provide the samples ? Free or Extra ?

It is free, depend on the value of the sample. The cost of the freight would be charge.

④ How long is the delivery time ?

Officially, it is within 7 days. Actually, we can deliver within 3 days. Customized products or non-standard size products would be taken 10-30 days to deliver, depend on the production cycle. Generally, most of the products finished and delivered within 20 days.

⑤ Do you accept the third party inspection ?

Absolutely yes!

⑥ How could you guarantee your products ?

Each batch of products must have its own factory inspection report. If the third-party inspection report of the product you purchased does not match our factory inspection report, we will resend the goods, and we will carry all the costs by ourselves.

⑦ How can I get your quotation as soon as possible ?

You may have many methods to contact us. Email and fax will be checked within 12 hours, and Skype, WeChat and WhatsApp will be online in 24/7. Please send us your requirement, attaching specification (Steel grade, dimension, quantity, destination port) or any you are concerned, you will obtain a competitive price and supply solution soon.
